Electical Steel/Silicon Steel
Electrical steel mainly consists of grain-oriented electrical steel and non-oriented electrical steel. Grain-oriented electrical steel widely used in transformer industry. Non-oriented electrical steel widely used in motor industry.
The grain-oriented silicon steel is a kind of electrical steel with its easy magnetization direction parallel to the rolling direction and a silicon content of around 3%. The grain-oriented silicon steel can be divided into two major categories including common grain-oriented silicon steel and high magnetic induction grain-oriented silicon steel. It is mostly applicable to the field of power transmission (such as transformers) and is an important functional metal material in the electrical power, electronic and military industries.
Grain-oriented silicon steel has long been known as the art work of steel, which are technologically sophisticated and technically complicated. Whether to master the technology for producing the grain-oriented silicon steel has always been used as an indicator of a steel manufacturer’s technological capability.
Features of Silicon Steel
Great Electromagnetic Performance
The silicon steel comes with low iron loss and high magnetic
induction, especially HiB steel which has lower iron loss and
higher magnetic induction.

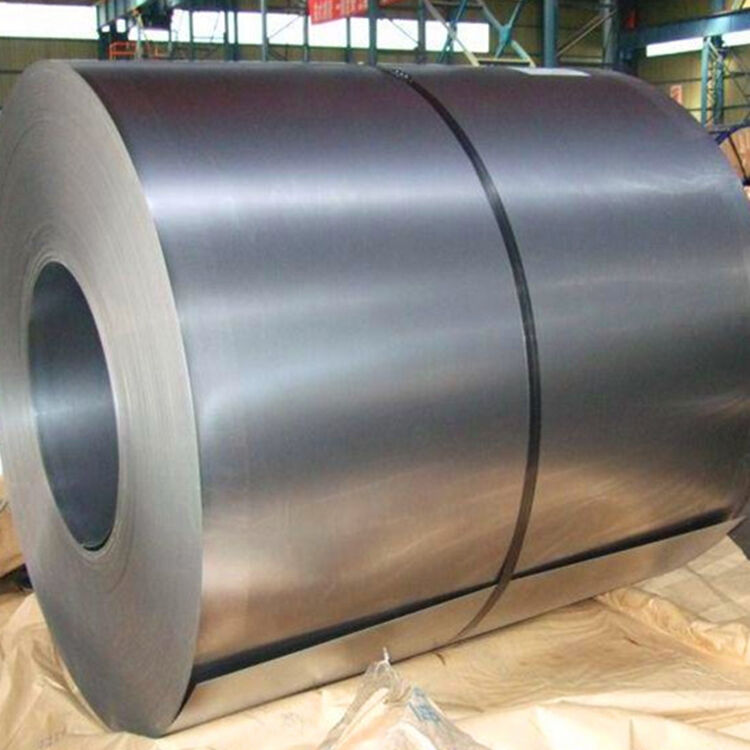

The material is often made in strips. Slight longitudinal and transverse thickness difference ensures a high lamination factor.
Uniform color, excellent insulative, high adhesion strength, high heat resistance, excellent processability, and superior corrosion resistance. Our silicon steel sheet is available in multiple insulating coating options, which have been reaching and RoHS certified that harmful matter content complies with domestic and overseas regulations on environmental protection.
Accessible to die-cut, with high dimensional accuracy.
Our silicon steel features a smooth surface, without defects such as rust, rolling marks, holes, cold-lap,folds, bubbles, etc
Grain-oriented electrical steel
Q: What is silicon steel? What is electric steel?
A: Electric steel is magnetically soft material among functional material, and is most wildly used. Generally speaking, silicon steel refers to electric steel with silicon content between 0.5%~6.5% Si. The general electric steel also includes the part that contains little silicon (Si<0.5%). However, nowadays the 2 concepts are not clearly defined, and can be interchangeable.
Q: Difference between electric steel B50A300 and B50AR300
A: B50A300 is whole processed product. It can be put into use after being purchased or annealing (reducing the loss through stress relief and construction perfection). But B50AR300 must go through annealing before use.
Q: Difference between whole processed silicon steel and semi- processed silicon steel
A: The target of whole processed non-oriented silicon steel annealing is to achieve targeted magnetic property (guarantee value), with the consideration of mechanical property required by stamping and the surface coating. The target of semi-processed product annealing is to achieve the mechanical property required by stamping. The manufactured magnetic property is so poor that the user has to do annealing and bluing to the magnet core so as to achieve the required magnetic property and surface insulation. There can be coating on the semi-processed non-oriented electric steel (applied in Japan market) or no coating (applied in American market, CRML).
Q: What is magnetic field?
A: The space field for the acting force between the two magnetic poles is described as magnetic field strength H, the unit is A/m (Ampere/meter). It is the driving primary field produced by external input electric current after the electric steel is made into motor.
